Product illustrations are exemplary and may differ from the chosen product.

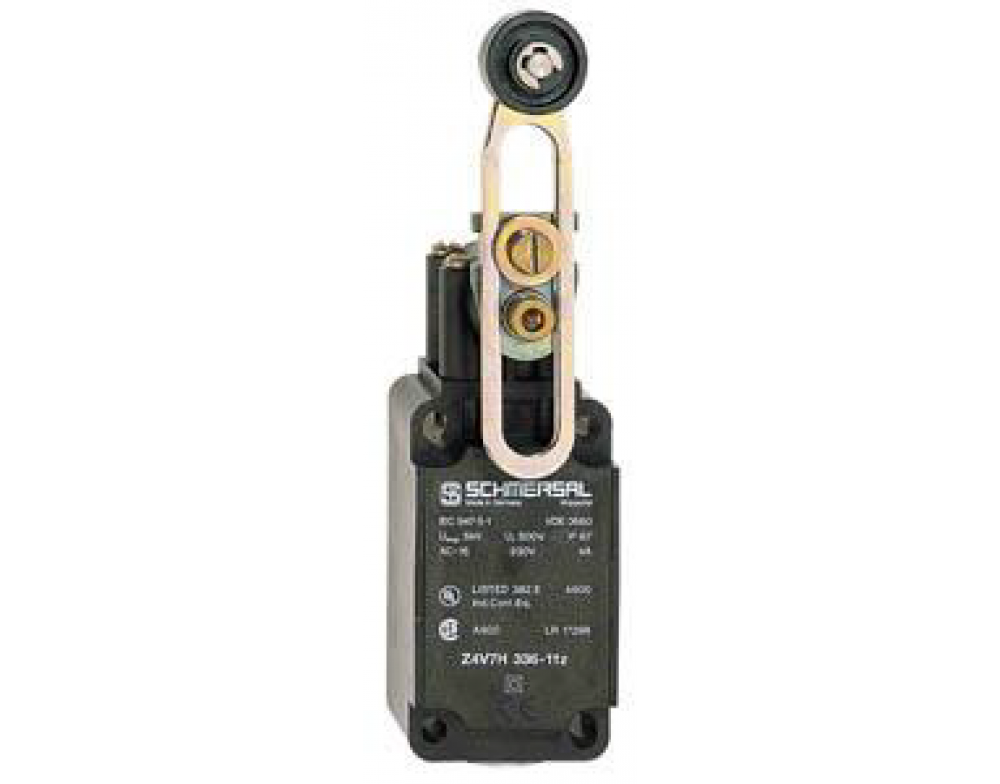

Position switch 336 with actuator roller lever 7H, only for positioning tasks, Lever angle adjustable in 10° steps, Thermoplastic enclosure, double insulated, Good resistance to oil and petroleum spirit, Actuator heads can be repositioned by 4 x 90°, 1 Cable entry M 20 x 1.5
| Technical Specifications | |
| Material | -Housing: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing -Lever: Metal film -Roller: Plastic -Contacts: Silver |
| Ingress Protection (IP) rating | IP67 |
| Operating Temperature | min: -30 max: +80 |
| Measurements | |
| Dimensions : H x W x D (mm) | 173.5 H x 40.5 W x 57 D |
| Weight (gram) | 165 |
| Mechanical Data | |
| Design of electrical connection | Screw connection |
| Cable section | -min: 0.75 - max: 2.5 |
| Design of actuating element | Roller lever |
| Switching frequency | max. 5000 /h |
| Actuating torque | min. 31 Ncm |
| Mechanical life | 30.000.000 operations |
| Switchover time | in accordance with actuating speed |
| Actuating speed | max: 2.5 m/s |
| Bounce duration | < 2 |
| Electrical Data | |
| Design of control element | Normally open contact (NO), Opener (NC) |
| Switching Principle | Creep circuit element |
| Number of auxiliary contacts | 1 |
| Number of safety contacts | 1 |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated insulation voltage Ui | 500 V |
| Thermal test current Ithe | 10 A |
| Utilisation category | AC-15: 230 V / 4 A, DC-13: 24 V / 4 A |
| Max. fuse rating | 6 A gG D-fuse |
• Only for positioning tasks
• Design to EN 50041
• Lever angle adjustable in 10° steps
• Thermoplastic enclosure
• Double-insulated
• Good resistance to oil and petroleum spirit
• Wide range of alternative actuators
• Actuator heads can be repositioned by 4 x 90°
• 1 Cable entry M 20 x 1.5
