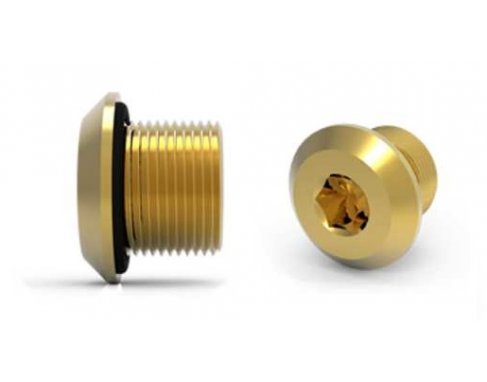

HAWKE 487 DOMED HEAD BRASS STOPPING PLUG, M20, EXD/EXE, ATEX/IECE, IP66

AZ Code: HG-487/M20

Domed head brass stopping plug, thread length 15mm,Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and mining applications, IP66

PCS

Technical Specifications
Cable Entry	M20
Material	Brass
Ingress Protection (IP) rating	IP66
Operating Temperature	-60°C to +80°C
Hazardous Rating	Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and mining applications. Increased Safety and Flameproof Exe I Mb, Exd I Mb, Exe IIC Gb, Exd IIC Gb, Extb IIIC Db, IM2 / II 2GD.
Measurements
Overall Diameter (mm)	26.5
Allen Key (mm)	10
Thread Length (mm)	15

Increased Safety and Flameproof Exe I Mb, Exd I Mb, Exe IIC Gb,
Exd IIC Gb, Extb IIIC Db, IM2 / II 2GD.
Certificate No's: Baseefa11ATEX0149X and IECEx BAS 11.0071X.
GOST R certified.
Operating Temperature Range:
Nitrile 'O' Ring fi tted as standard -60°C to +80°C
Silicone Option -60°C to +160°C
Group I, II and III.

Manufactured in Brass, Nickel Plated Brass, Steel, Nickel Plated
Steel and Stainless Steel. (Aluminium for Group II use only).
M16 to M130 as standard.
Other parallel thread options available on request, including
BSPP, PG, NPSM and ET. NPT available as 387 Exe Plug.
Metric entry threads are 1.5mm pitch as standard.
Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and
mining applications.
Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1,
IEC/EN 60079-7 and IEC/EN 60079-31.
Ingress Protection: IP66.
Assembly Instruction Sheet: AI 411.
