Product illustrations are exemplary and may differ from the chosen product.

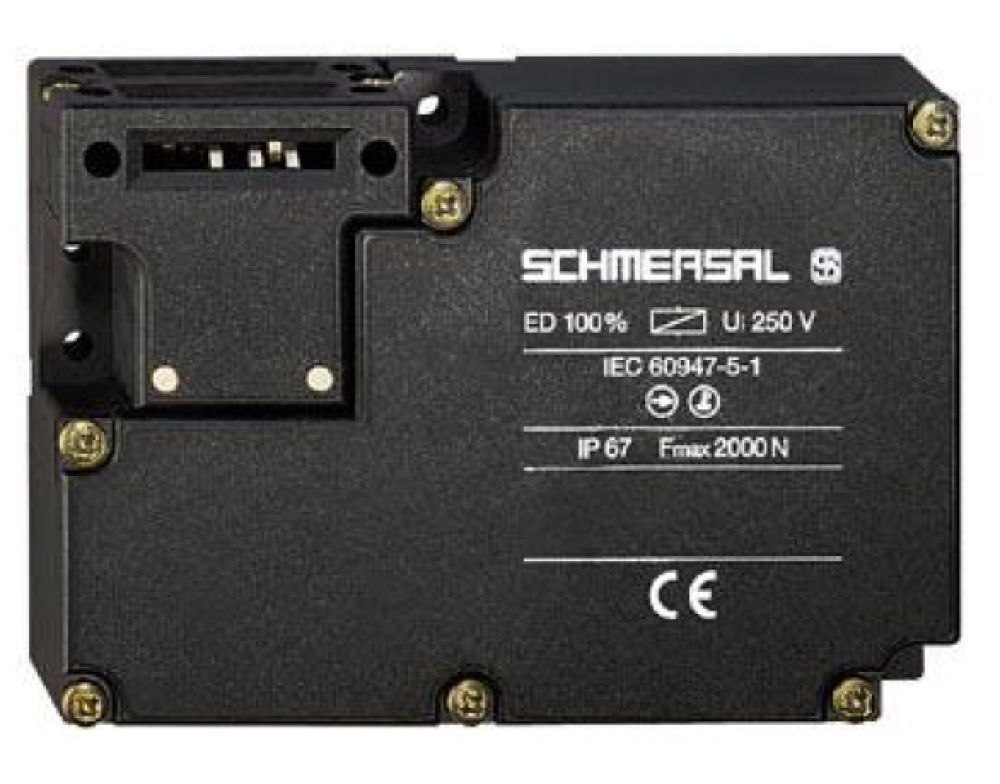

Solenoid interlock switch, thermoplastic enclosure, double insulated, interlock with protection against incorrect locking, 6 contacts, long life, manual release, 4 cable entries M16 x 1.5
*actuators are sold separately
| Technical Specifications | |
| Contacts (NO/NC) | 2NO + 4NC |
| Ingress Protection (IP) rating | IP67 |
| Operating Temperature | −25 °C to +60 °C |
| Measurements | |
| Dimensions : H x W x D (mm) | 90 mm x 130 mm x 30 mm |
| Weight (gram) | 500 |
| Mechanical Data | |
| Actuating play in direction of actuation | 5.5 mm |
| Design of electrical connection | Screw connection |
| Cable section | - min: 1 x 0.25mm2 - max: 1 x 1.5mm2 |
| Emergency unlocking device (Y/N) | No |
| Latching Force | 30N |
| Manual release (Y/N) | Yes |
| Mechanical life | > 1,000,000 operations |
| Emergency release (Y/N) | No |
| Clamping force Fmax | 2000 N |
| Positive break force | 20N |
| Positive break travel | 10mm |
| Actuating frequency | max. 1000 / h |
| Actuating speed | max. 2 m/s |
